Photometric Testing Efficiency

SSL L-200 Photometer is laboratory grade photometer. It is a good choice for illuminance measuring application in wide dynamic range. Suitable e.g. for retroreflection or spatial light distribution measurements where low light levels are measured.

Features

• Broadband photometer with CIE 1924 photopic sensitivity spectral response

• Measurement quantities: Illuminance Ev (lx), Optical flicker frequency (Hz), Flicker index, Percent flicker (%), Duty cycle (%), EV,MEAN, EV-max, EV-min, FFT analysis

• 12 measuring ranges in decades

• Measurement range: 0.3 mlx -100 klx

• Display: character LCD 2x16

• RS232 bus / USB

• Power supply: 230V 50Hz

• Measuring head: LH-200 (Spectral match <6% to CIE 1924 V(λ) function), LH-210 (Spectral match <3% to CIE 1924 V(λ) function)

• Options: temperature sensor, Luminance head (different field of view options in the range of 1.4°-16°)

RFQ you will find here, and to get more information, please contact here!

SSL C-400 Colorimeter is a quick and reliable measurement instrument. With the LabVIEW drivers, it can be integrated to part of the overall product line test system.

Features

• 3-channel tristimulus colorimeter

• Measurement quantities: Illuminance Ev (lx), Correlated Color temperature CCT (K), color coordinates CIE1931 xy, CIE1960 uv, CIE1976 u'v'

• 4 measuring ranges in decades

• Self-color correction algorithm for xy, CCT and Ev based on initial integrated XYZ values

• Measurement range: 0.3 - 10 000 lx

• USB powered (drivers installed automatically in Win 8 and newer versions)

• Measuring head CH-400, Spectral match <6% to CIE 1931 color matching functions x,y,z for each channel

• LabVIEW drivers for light tester integration

• Options: temperature

Read more information of LightTester

RFQ you will find here, and to get more information, please contact here!

• 3-channel tristimulus colorimeter

• Measurement quantities: Illuminance Ev (lx), Correlated Color temperature CCT (K), color coordinates CIE1931 xy, CIE1960 uv, CIE1976 u'v', Optical flicker frequency (Hz), Flicker index, Percent flicker

• 6 measuring ranges in decades

• Self-color correction algorithm for xy, CCT and Ev based on initial integrated XYZ values

• Measurement range: 0.03-10000 lx

• Display: character LCD 2x16

• RS232 bus

• Power supply: 230V 50Hz

• Measuring head CH-600, Spectral match <6% to CIE 1931 color matching functions x,y,z for each channel

• Options: temperature sensor

RFQ you will find here, and to get more information, please contact here!

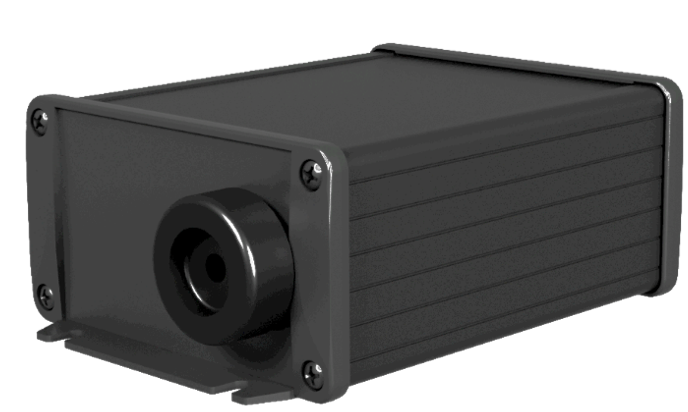

• Spectrometer (data 1 nm steps, in 380 - 780 nm, bandwidth < 5 nm)
• Wavelength calibration
• Spectral power calibration
• Automatic integration time
• USB A/B cable
• Can be connected to SSL goniophotometer and integrating sphere systems

RFQ you will find here, and to get more information, please contact here!
