High Precision Tristimulus Colorimeter SSL LC 800-400x

SSL LC 800-400x tristimulus colorimeter comprises LC 800.4 4-channel photocurrent meter and CH400x measuring head. x denotes two variants of input optics.

It is a good choice for illuminance measuring application in wide dynamic range. Suitable e.g. for goniophotometer, retroreflection or spatial light distribution measurements where low light levels are measured.

Advantages of new version for multichannel tristimulus colorimeter

1. Common input optics

2. Wider dynamic range of 9 decades

3. 4-channels for separation of X channel to Xred and Xblue (LC-800.4 version)

4. Larger bandwidth at smaller photocurrents

5. Improved sampling rate

6. On-the-fly measurement compatible

Measurement quantities:

• Illuminance Ev (lx),

• Optical flicker frequency (Hz), Flicker index, Percent flicker (%), Duty cycle (%), EV,MEAN, EV-max, EV-min, Flicker risk (IEEE 1789), SVM, PstLM
• Effective intensity and pulse width
• CCT (K), CIE1931 xy, CIE1976 u'v'

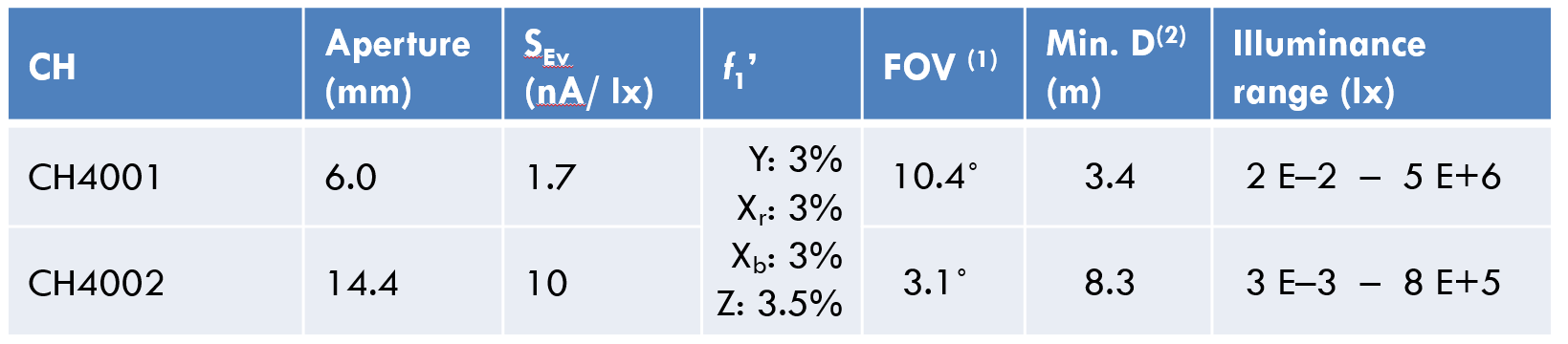

Devices comes with two optional measurement apertures:

Signal bandwidth at different photocurrent levels

• Linearity <0.1%


• Sampling rate
• Timed sampling: 100 kHz (10ms)
• Maximum: ~200 kHz (5ms)
• SVM: 36 kHz (1s measuring time)
• P_st^LM : 2 kHz (1-5min)
• Display: character LCD 2x16

• Data communication: RS232 bus, USB
• LC800-400x Package includes:
• LC-800-4, 12V power supply, 1.8m USB cable, 1.8m RS-232 cable.
• CH400x tristimulus colorimeter head with 1m connection cable DB15 male -DB15 female.
